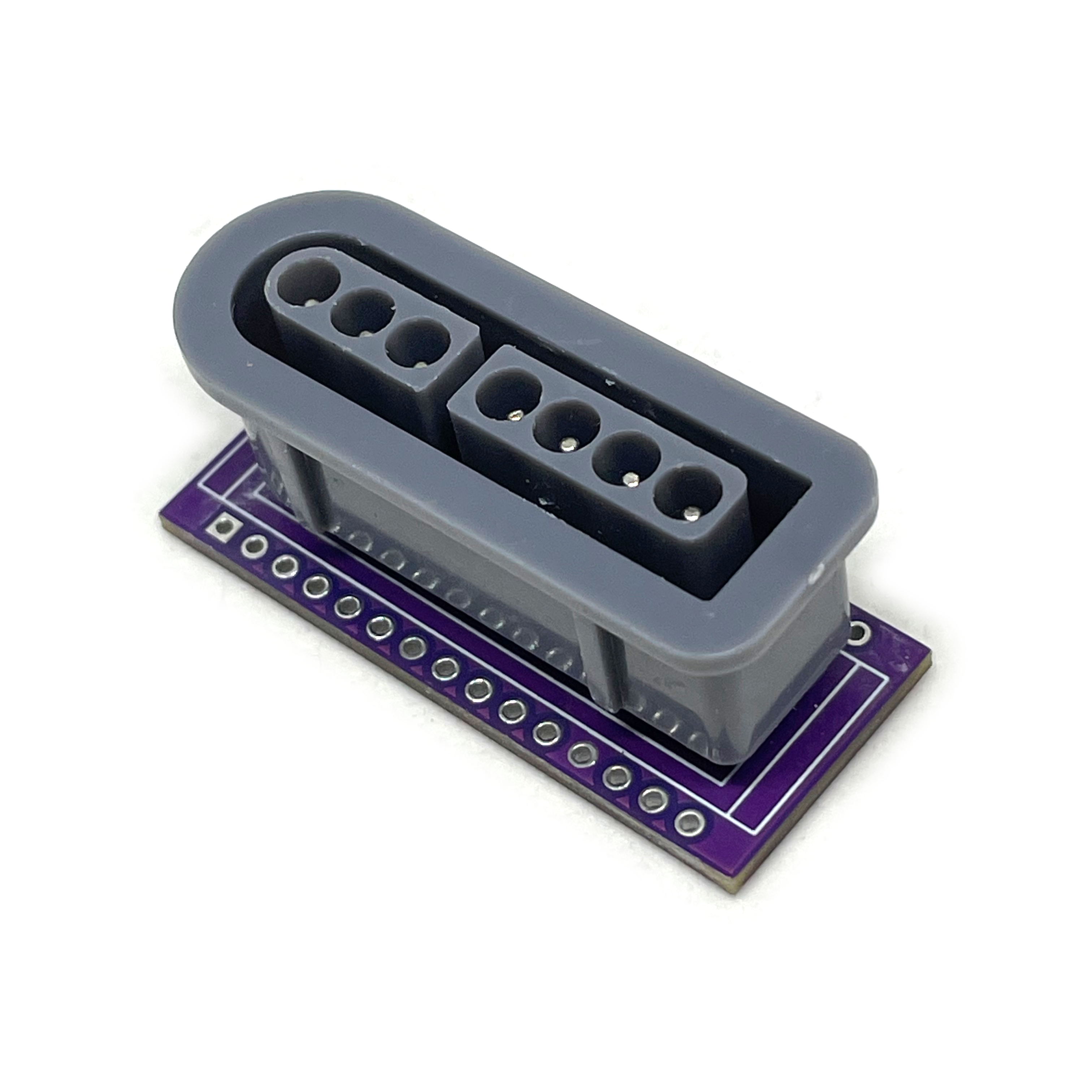

SNES Controller Connector Breakout

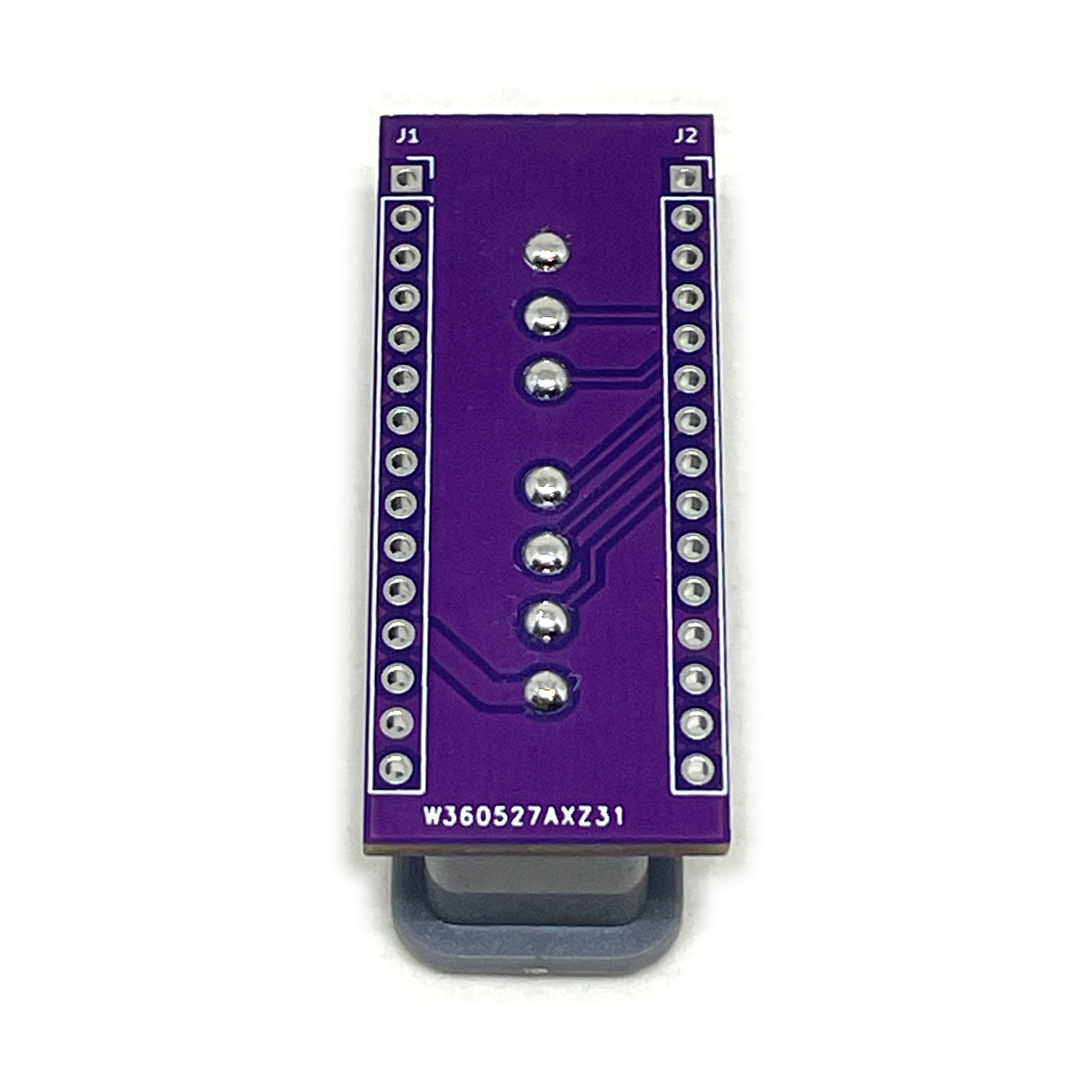

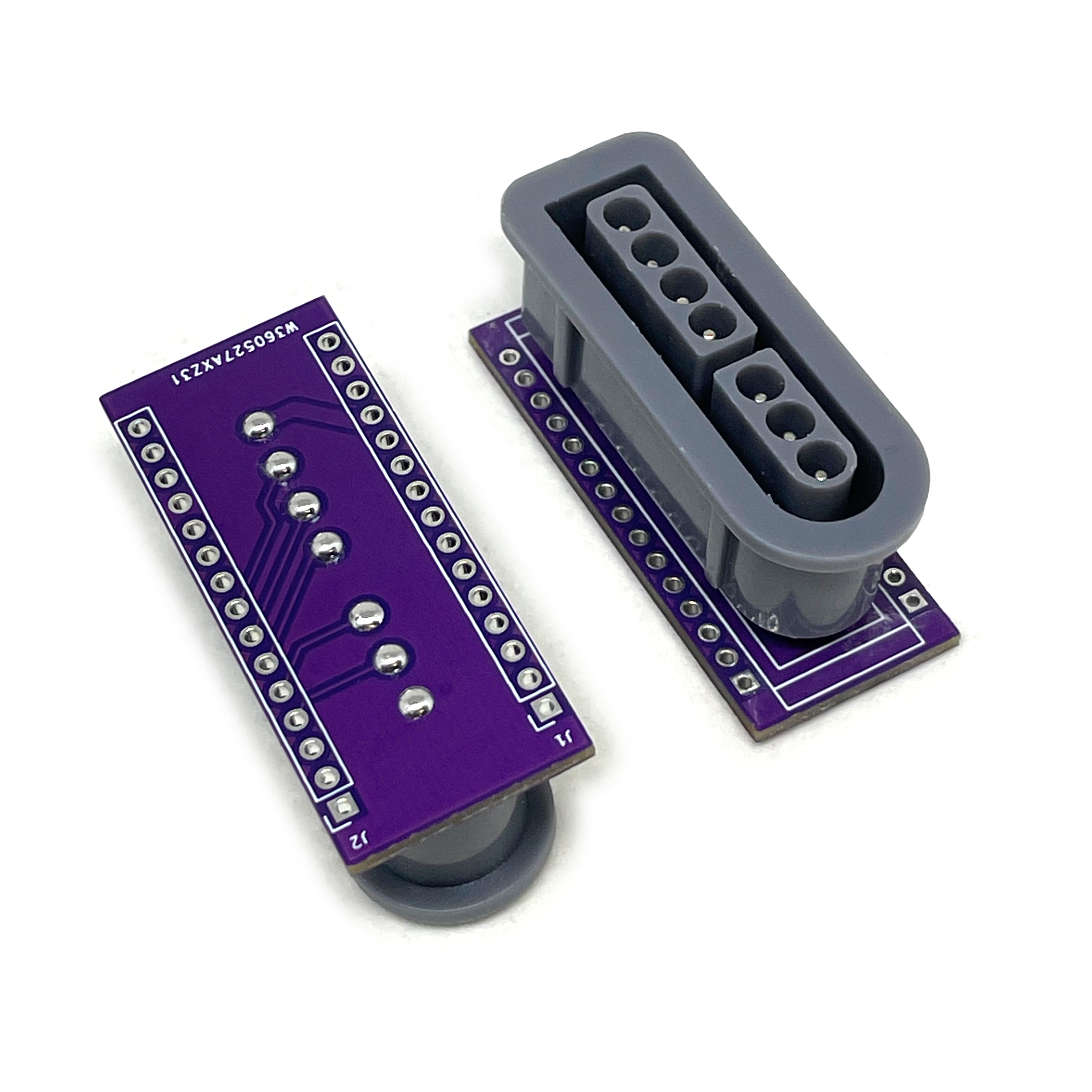

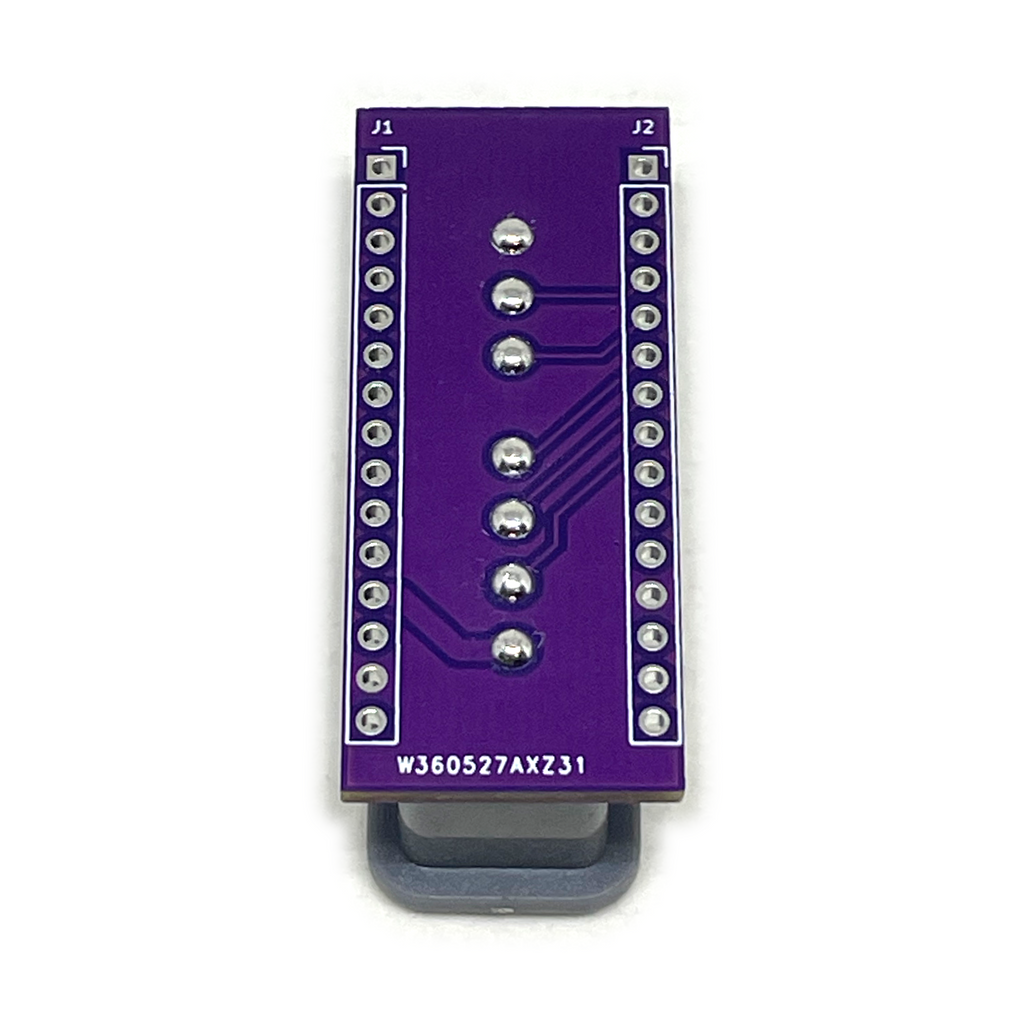

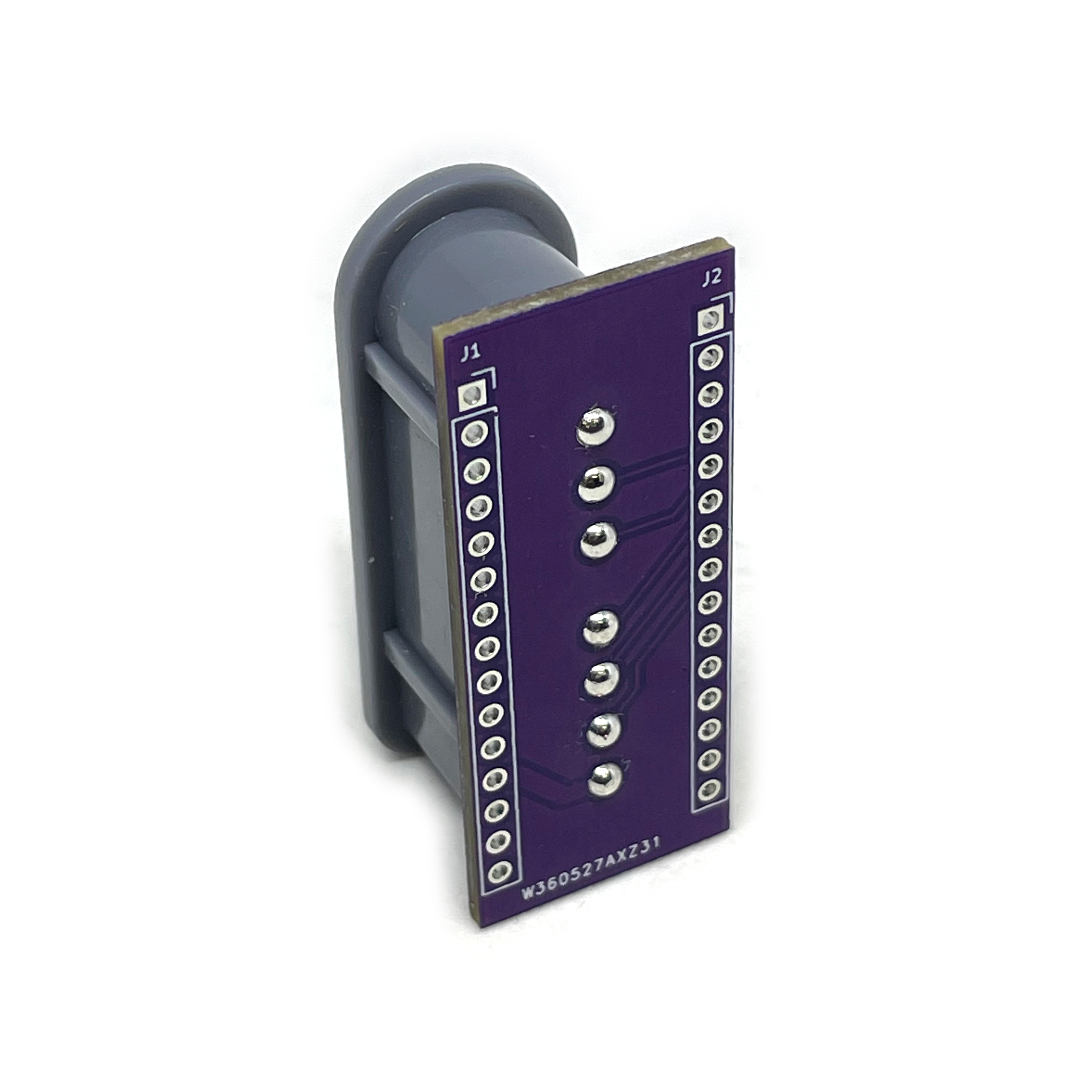

This simple board breaks out all seven of the SNES controller connector pins.

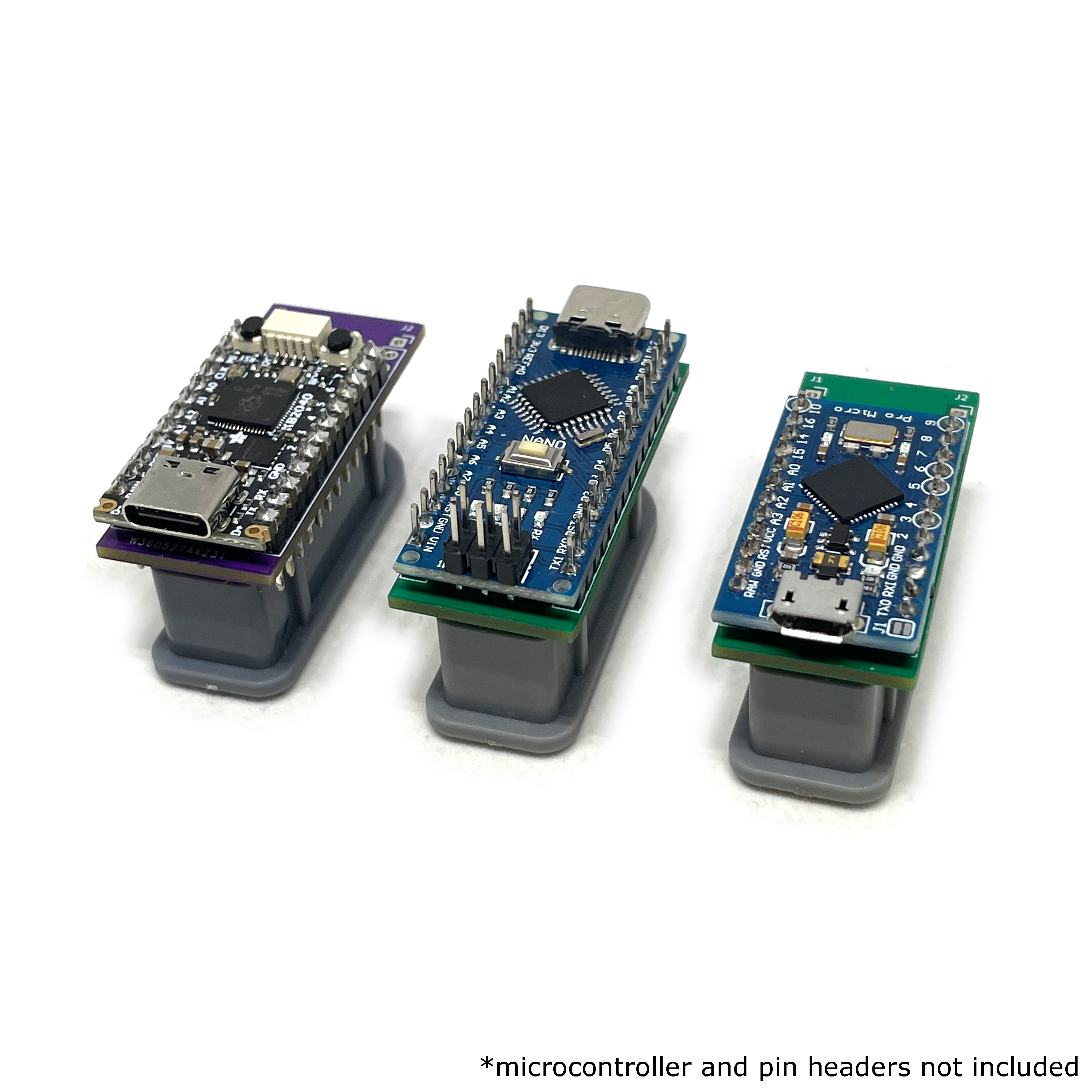

With the footprint designed for Arduino Nano boards, It can also be used with many other dev boards with a similiar footprint like the Arduino Pro Micro.

Combine this board with an Arduino Pro Micro and the open source SNESpad library to create a USB HID keyboard, mouse, or gamepad.

For best compatibility 5v boards are recommended as this is the range SNES peripherals are intended for.

pcb: https://www.flux.ai/robertdalesmith/snes-controller-arduino-nano-shield
code: https://github.com/RobertDaleSmith/SNESpad

* Microcontroller and pin headers are not included.
